Gas Detector รุ่น SKY2000-WH

SKY2000-WH

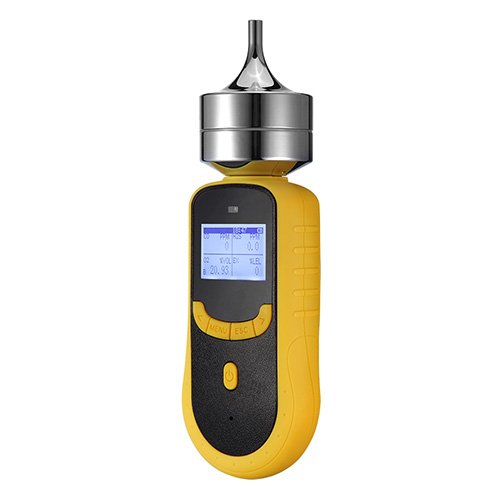

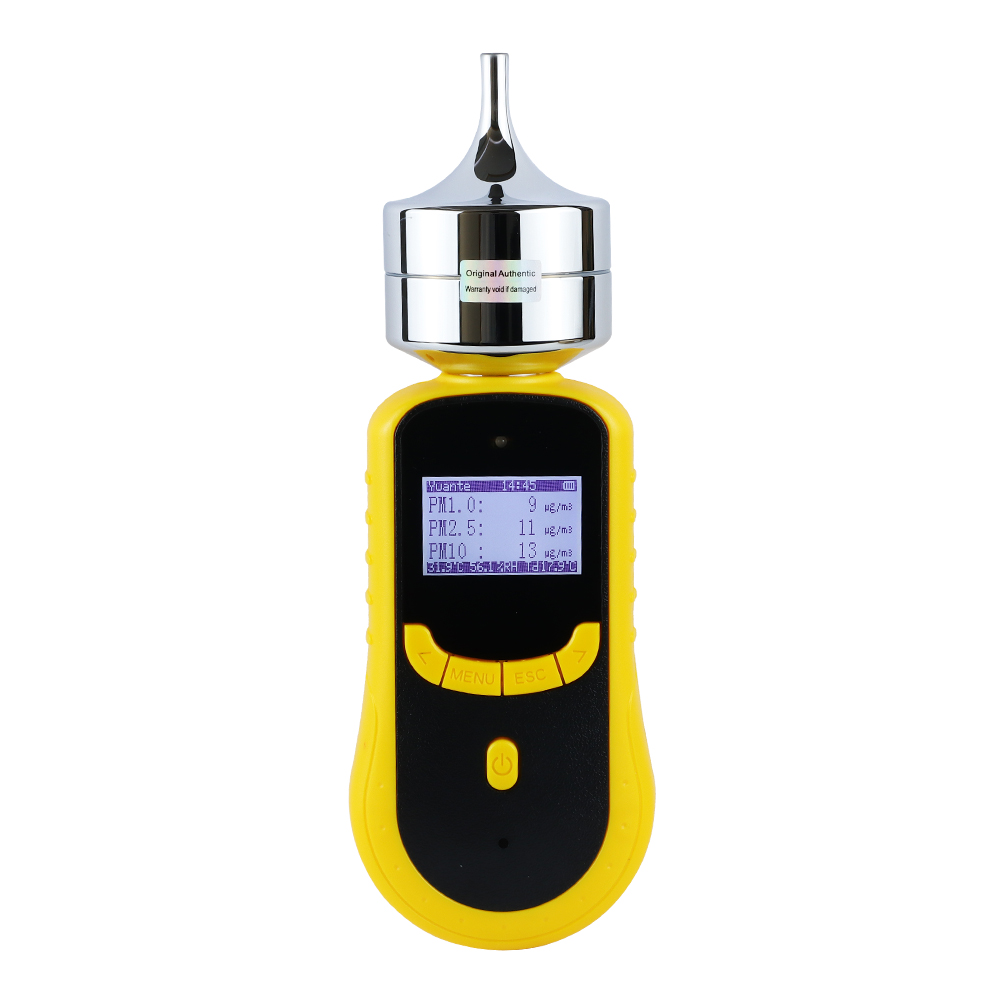

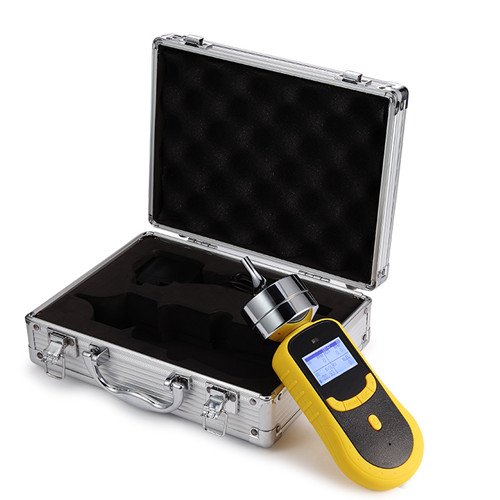

Portable Pumping Gas Detector

SKY2000-WH series gas detector is a kind of fast response and high accuracy gas measurement device. With internal sampling pump, fast sampling speed and high flow rate, ensuring the response time of the detector. Unique design, small size and easy to carry with. Special high intensity engineering plastics housing, suitable for different kinds of situation and environment.

Product Advantage

Optional data logging function to export data to PC through USB wire
LCD dot matrix display, support backlight function
Built-in sampling pump
Explosion-proof certified, explosion-proof grade: E x i a IIC T4 Ga
With Span-calibration and zero calibration functions, makes the detection more accurate and reliable.
One press to res tore factory setting
Easy to operate and use friendly
Ultra-high buzzer alarm sound, alarm with sound and light at the same time.

Technical parameters

Gas Detected : O2/CO/H2S/EX is the standard gas combine,
other combine can be specified
Detection Principle : Electrochemical(O2, CO, H2S), Catalytic
combustion(EX), Specified according to sensors.
Measure range : Specified according to application
Resolution : Specified according to sensors
Precision : ≤ ± 1-5% F.S
Data logging (Optional function) : 100000 readings can be stored on device and download through PC software
Response Time : ≤30S
Repeatability : ≤±1%
Zero shift : ≤±1%（F.S/year）
Operating language : Chinese/English
Temperature : -20℃～50℃
Explosion-Proof : ExibⅡCT4
Alarm mode : Sound, light, vibration
Dimensions : 205*75*32mm
Recovery Time : ≤10S
Linearity error : ≤±1%
Display : LCD dot matrix display
Gas unit : Units are switchable
Humidity : 0-90%RH
Degree of protection : IP66
Operating time : 100h（pump off）
Weight ：300g
