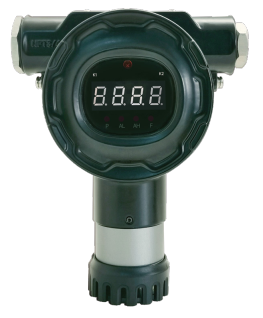

SG100 Series is a cost-effective and intrinsically safe gas detector for the continuous monitoring of toxic gases, oxygen, flammable gases. With IECEx, ATEX certifciates, explosion level reaches Ex db IIC T6 GB/Ex db ia IIC T6 GB/Ex da db ia IIC T6 GB. Having a3-wire4 to 20 mA analog output with relays, it also offers HART, RS485 Modbus protocol, making it compatible with most control systems. With optional wireless function, no need wires to save the labor cost and realiza the transmission without limits. Adopt magnetic wand design, it's safe and easy to do nenu navigation in explosion areas. It is also an intelligent hot-pluggable tixed gas detector, which is easily for maintenance after installationt.
Product Advatage
IP66/IP67 water & dust resistant
Module chamber desing, no need to disassemble of the whole machine or return for calibration when maintenance, just replace the sensor chamber only and can work property
One-persob calibration is esyily performed using calibration cap
Body weight is only 1 kg, easy to install by one-person
Quick site installation using a mounting plate accessory
Standard 4-20 mA current signals, RS485 Modbus, 1 set of relay signal output
Optional with 2 sets of relay signals, voltage 1-5V
OPtional HART digital communication provides configuration
Optional Wireless transmission modeds can be selected
